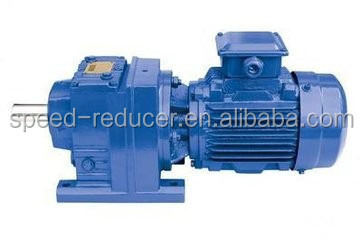

Alloy steel and cast iron R series speed reducer gear helical motor for apron conveyor driver manufacturer in china

1 Set
MOQ
Alloy steel and cast iron R series speed reducer gear helical motor for apron conveyor driver manufacturer in china
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: WR
Gearing Arrangement: Helical
Output Torque: 1~18000N.m
Rated Power: 0.18~160KW
Input Speed: 0~1500rpm
Output Speed: 0.1~1100rpm
colour: red, blue, green, as required
material: alloy steel and cast iron
quality control system: ISO9001-2008
ratio: 1~9743
Informação básica
Model Number: WR
Condições de Pagamento e Envio
Packaging Details: wooden case
Supply Ability: 1000 Set/Sets per Month
Descrição de produto

WR series cylinder gear reducer overview:

WR series cylinder gear reducer adopts hard teeth face cylinder helical gear transmission; It can realize the same axis(double-stage and three stage) and parallel axis transmission. It's characteristics are:

1,Construction compact, save space for mounting, large load-bearing capacity and long life.

2,A little difference between transmission ratio rate, high transmission efficiency and low noise, block design, several rates can be combined together.

3,Reducer have two mounting form: foundation form and flange form, reducer is supplied with Y series electric motor, if customer need other types of motor, we can also supply to match. It's combination with variator or gear reducer can meet all kinds of speed requirement.

Working Environment:

1,Working temperature:-40~50°c(The lubrication should be heated until above 0°c if the machine works below 0°c)

2,The altitude of working place should be lower than 1000 meters.

3,The input rotate speed should not exceed 1800 rpm. The circumferential speed of the gear should not exceed 20m/s.

4,Suitable for normal-reverse rotation.

5,Without industry limitation.

6,Please consult our technical supporting department for other circumstances.

Related Products

Our main products:

WR, WF, WK, WS series modular gear speed reducer with brake motor;

H,B series standard industrial gearbox;

P series planetary gear speed reducer;

T series spiral bevel gearbox;

ZDY, ZLY, ZSY, ZFY parallel shaft series;

DBY, DCY, DFY vertical shaft series hardened gear reducer;

NGW planetary hardened gear speed reducer.
